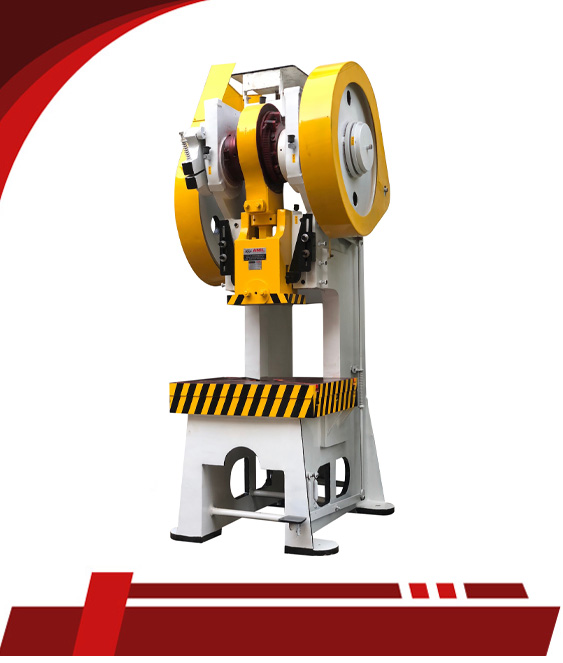

C-Type Power Press
C-Type Power Press
Compact in construction so as to occupy less space, the C-Type Power Press available with us are also high performing. These power presses that we have are known for their high load bearing capacity. Their specified are a follows:
| CAPACITY IN TONNES | 7.5 | 10 | 20 | 30 | 50 | 75 | 100 | 150 |
|---|---|---|---|---|---|---|---|---|
| Size of table (inches) | 11 × 17 | 13 × 19 | 16 × 22 | 17 × 24 | 21 × 30 | 24 × 34 | 30 × 36 | 32 × 40 |
| Bore in table | 4.25 | 5.5 | 6.5 | 7.25 | 8.25 | 9.5 | 10.5 | 11 |
| Shut weight | 9.5 | 11.5 | 13 | 15 | 18 | 19 | 21 | 22 |
| Stroke adjustable | 2 | 3 | 3.5 | 4 | 5 | 5.25 | 6 | 6.5 |
| Bore in slide | 0.75 | 1 | 1.25 | 1.5 | 1.5 | 2 | 2 | 2.25 |
| Crank size | 2.5 | 2.75 | 3.5 | 4.5 | 5 | 5.5 | 6 | 6.5 |
| Screw dia. | 2.25 | 2.25 | 2.75 | 3.25 | 3.5 | 4 | 4.25 | 4.75 |
| Power required (H.P.) | 1 | 2 | 3 | 3 | 7.5 | 7.5 | 10 | 15 |
| Pulley size | 4 | 4 | 4 | 5 | 6 | 7 | 8 | 8 |
| Stroke per minute | 65 | 65 | 60 | 55 | 50 | 42 | 38 | 36 |
| R.P.M. | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Weight (K.G.) | 510 | 900 | 1350 | 1850 | 2700 | 3600 | 5100 | 5500 |
The C-Type Power Press is a high-performance metal forming machine designed for exceptional precision, stability, and durability. Its open C-frame structure provides easy access for tool setup and material handling, making it ideal for sheet metal industries, automotive parts manufacturing, hardware production, and heavy-duty stamping operations. Built with a rigid frame, this machine ensures minimal vibration and consistent output during continuous high-speed production cycles.
-
Robust C-frame construction ensuring smooth and stable operation.
-
Precision slide alignment for accurate punching, stamping, and blanking.
-
Adjustable stroke length to support multiple forming applications.
-
Heavy-duty components designed for long, maintenance-free production cycles.
-
Available in capacities ranging from 10 to 150 tons to suit varied industrial needs.
Our C-Type Power Press Machine is built for industries requiring high accuracy, strength, and efficiency. Equipped with a durable crankshaft, balanced flywheel, and advanced slide guiding system, it ensures smooth and safe operation even during continuous heavy-duty loads. Each machine is manufactured with premium-grade materials and undergoes strict quality testing, ensuring long service life and superior productivity. Whether your application involves punching, bending, embossing, blanking, or forming, this power press delivers unmatched performance and versatility.
The C-Type Power Press Machine comes equipped with high-grade components, including precision-ground slides, heavy-duty bearings, and a well-balanced flywheel for stable and energy-efficient operation. Its adjustable shut height and customizable stroke length make it suitable for a wide range of industrial applications while maintaining consistent performance.
This machine features an ergonomic control panel, efficient lubrication system, overload protection, and compatibility with automation units and die tooling systems. Available in 10, 20, 30, 50, 75, 100, and 150-ton capacities, the C-Type Power Press is an ideal choice for manufacturers seeking reliability, high productivity, and reduced operational downtime.
